Trees - How Depth First Traversal Works

---

Terminology

• Node - a component ofa tree that contains its own value and reference(s) to other nodes
• Root - The node at the beginning of a tree
• Left - in a binary tree, references one of the two child nodes to a node
• Right - in binary trees, references the other of the two child nodes

Explanation of Traversing Trees using Depth First

Recursion is the most common method of tree traversal and utilizes a call stack. There are three methods for depth first traversal. They are:

• Pre-Order
• In-order
• Post-Order

Pre-order - root -> left -> right

1. Determine starting node and make it the current node
2. Output current value
3. Check for an unused left child of the current node
4. If found, push current to stack then make child the current node and go back to 2
5. If not found, check for an unused right child of the current node
6. If found, push current to stack then make child the current node and go back to 2
7. Check to see if there are any nodes remaining in the stack
8. If there are, make the node now on top of the stack current node, pop the node off of the stack and go back to 2
9. If there are not, the traversal is complete

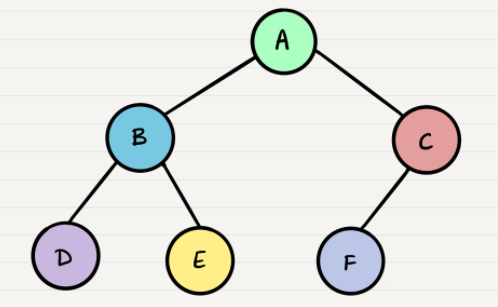

Output from example tree:

• A -> B -> D -> E -> C -> F

In-Order - left -> root -> right

1. Determine starting node and make it the current node
2. Check for an unused left child of the current node
3. If found, push current to stack and make child the current node and go back to 2
4. If not found, output current value
5. Check for an unused right child of the current node
6. If found, push current to stack and make child the current node and go back to 2
7. Check to see if there are any nodes remaining in the stack
8. If there are, make the node now on top of the stack current node, pop the node off of the stack and go back to 2
9. If there are not, the traversal is complete

Output from example tree:

• D -> B -> E -> A -> F -> C

Post-Order - left -> right -> root

1. Determine starting node and make it the current node
2. Check for an unused left child of the current node
3. If found, push current to stack then make child the current node and go back to 2
4. If not found, check for an unused right child of the current node
5. If found, push current to stack then make child the current node and go back to 2
6. If not found, output current value
7. Check to see if there are any nodes remaining in the stack
8. If there are, make the node now on top of the stack current node, pop the node off of the stack and go back to 2
9. If there are not, the traversal is complete

Output from example tree:

• D -> E -> B -> F -> C -> A
